Intelligent CNC Electric Screw Press

We focus on the actual performance of equipment and the compatibility with customer processes, and are willing to provide customized solutions and stable equipment performance to support the stable operation of customer production lines.

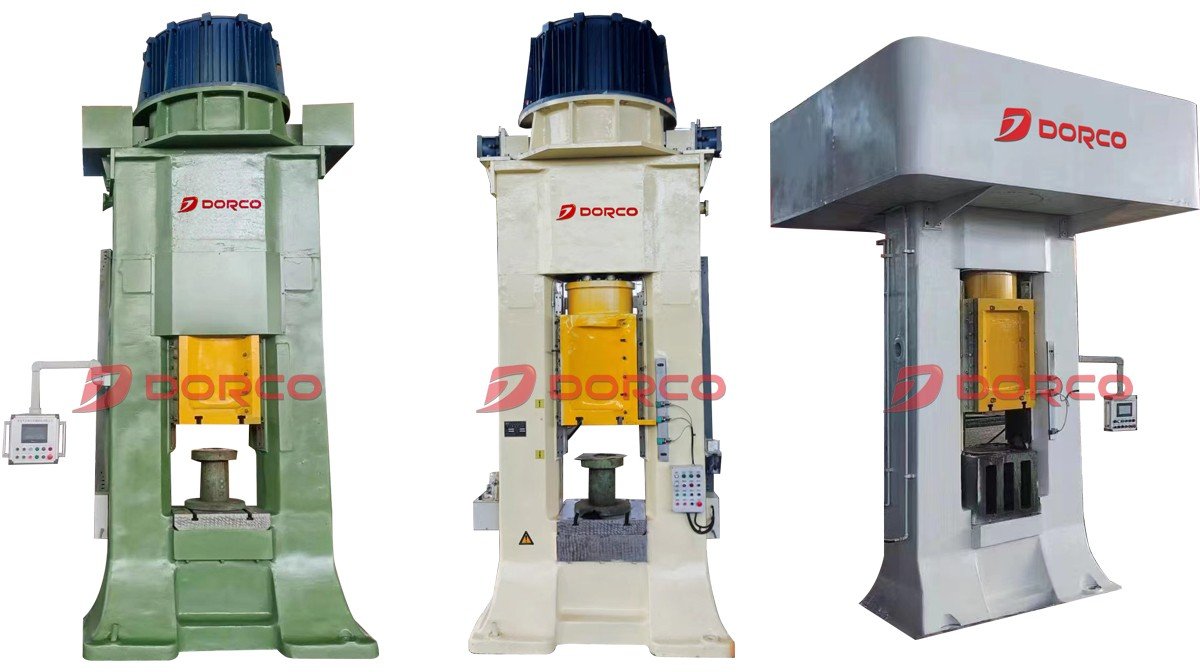

Intelligent CNC electric screw press

This device has the characteristics of simple and compact structure, short transmission chain, fast striking speed, high efficiency, and easy operation and maintenance. According to the forging forming process, the impact force and energy can be adjusted at any time. The forging forming accuracy is high, the mold stress is small, and the service life is long.

Main technical performance:

Equipped with overload protection function;

It has the functions of pre selection and display of striking force and striking energy, and can select force and energy according to the forging process;

The effective energy under nominal force is ≥ 60% of the unsealed energy of motion;

The full stroke braking device ensures the safe operation and adjustment of the press;

The reliable pneumatic top material provides users with greater ejection reliability;

A reliable lubrication system ensures the effective operation of the press's motion pair;

Micro vibration and low noise reduce environmental pollution;

The short transmission chain brings convenience to operation and maintenance;

Reliable safety protection provides protection for both personnel and equipment;

The high geometric accuracy of the entire machine ensures the quality of the forgings

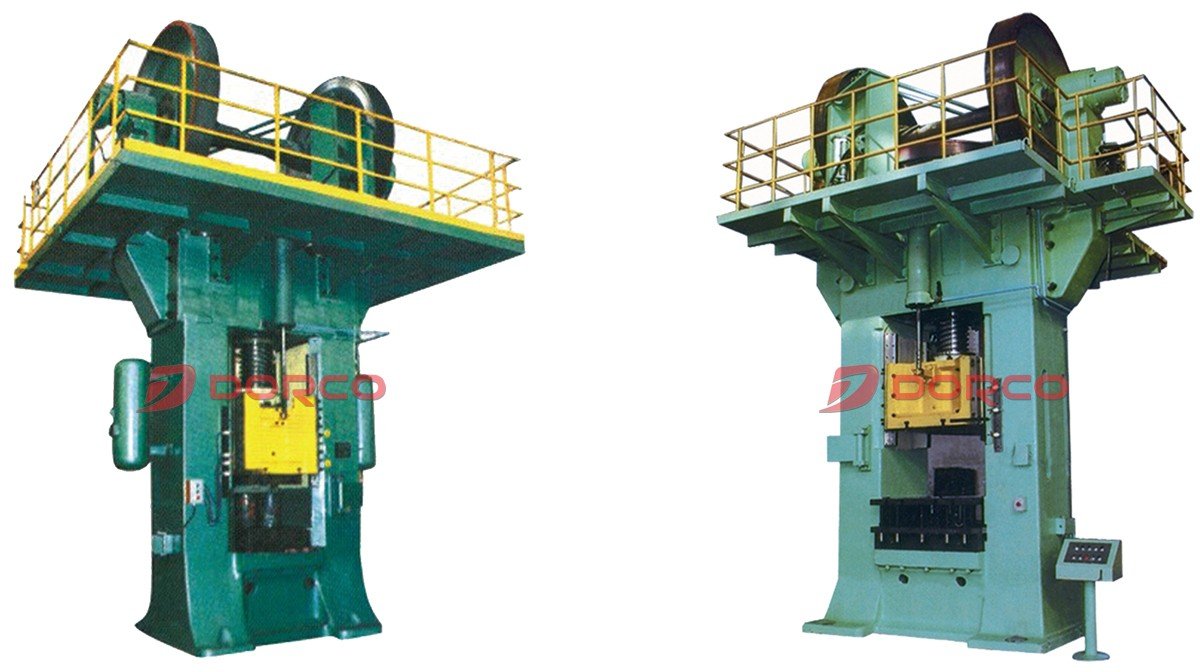

Double disk friction screw press

On the basis of retaining the typical structural characteristics of the double disc friction press, this machine also has the following technical features:

1. Adopting a combination of mechanical, electrical, and pneumatic control, the action is sensitive, the operation is stable, and the strike energy can be pre selected;

2. Using a translational brake device fixed on the platform to brake the flywheel, the braking torque is large, sensitive and reliable, and braking can be achieved at any position throughout the entire stroke.

3. Adopting a structure of integral frame and pull rod, the frame has good strength.

4. The control has been changed from a fork operated type to a two cylinder direct push type, with the control cylinder directly pushing the spindle to move left and right.

Direct drive electric screw press

The electric screw press belongs to the direct drive structure of the motor. The motor torque is directly transmitted to the screw without intermediate transmission components such as belts and gears, making the press structure simple;

2) No transmission energy loss, high efficiency;

3) The absence of easily worn transmission components reduces the maintenance workload of the equipment;

4) Without lubrication and maintenance in the transmission process, it has high reliability and high precision in repeated strikes;

5) No transmission link, low noise;

6) Direct drive is more suitable for short trips and multi frequency strikes;

7) The rotor becomes a part of the flywheel, and there will be no problem of power outage on the shaft;
